Why One Inspection Method May Not Be Enough

Modern infrastructure inspections increasingly rely on technologies that can collect detailed information without requiring personnel to physically access every inspection point.

Drone-based visual inspection provides a detailed view of physical conditions. Infrared thermography adds another layer by identifying abnormal thermal patterns that may not be visible to the naked eye.

Used together, these technologies can provide a more complete picture of an asset’s condition.

At Helios Infrasight, we combine RPAS operations, high-resolution visual imaging and thermal inspection techniques to collect information that can support maintenance and condition-assessment programs.

The objective is not simply to capture more images.

The objective is to collect the right information, under the right conditions, in a format that maintenance teams can use.

What Visual Drone Inspection Can Reveal

High-resolution cameras allow inspectors to examine areas that may be difficult, elevated or inefficient to access using conventional methods.

Depending on the asset and inspection scope, visual imagery can help document conditions such as:

• Cracks or surface damage
• Corrosion
• Coating deterioration
• Loose or missing hardware
• Damaged insulators
• Oil staining
• Water ingress
• Erosion
• Storm-related damage
• Vegetation encroachment
• Surface contamination
• Physical deformation

What Thermal Inspection Adds

Visual inspection shows what an asset looks like.

Thermal inspection can provide information about how an asset is behaving thermally.

Infrared cameras detect thermal radiation and display temperature patterns across the inspected surface. In electrical and industrial applications, abnormal heat patterns can indicate conditions that deserve additional investigation.

Potential applications include:

• Electrical connections
• Switchgear
• Disconnects
• Transformers
• Conductors and components
• Solar equipment
• Mechanical equipment
• Industrial systems

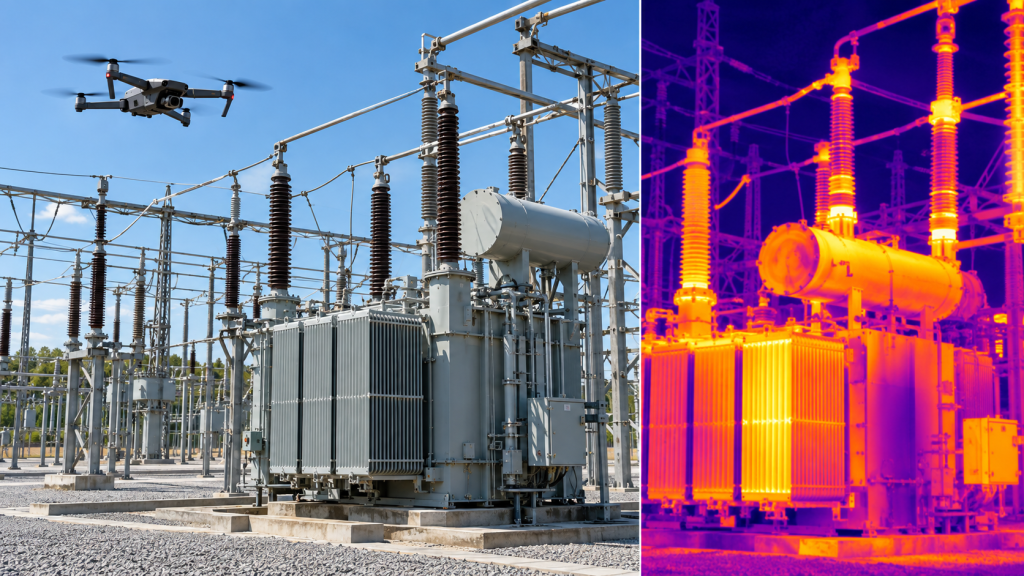

Visual and Thermal Images Tell Different Parts of the Story

One of the advantages of combining visual and thermal inspection is that the two data sets can complement each other.

A visual image can establish:

• What component was inspected
• Where the component is located
• The physical condition of the equipment
• The surrounding environment
• Visible damage or deterioration

A thermal image can provide additional information about:

• Temperature distribution
• Localized hot areas
• Temperature differences between comparable components
• Temperature rise relative to a reference
• Thermal patterns requiring further investigation

For example, an electrical connection may appear normal in a standard photograph while showing a different thermal pattern compared with similar connections.

The opposite can also occur. A visually damaged component may not show a significant thermal anomaly under the operating conditions present during the inspection.

Neither image should automatically be interpreted in isolation.

Together, they provide additional evidence for the inspection record.

Inspection Conditions Matter

The quality of an inspection depends not only on the equipment being inspected but also on the conditions under which the data is collected.

For thermal inspections, the inspector may need to consider:

• Ambient temperature
• Relative humidity
• Wind speed
• Solar loading
• Equipment load
• Inspection distance
• Viewing angle
• Surface characteristics
• Reflected apparent temperature
• Camera focus
• Thermal resolution

These factors should be documented because they provide important context when the thermal data is reviewed later.

For example, direct solar exposure can heat an outdoor component and create temperature patterns that may not represent an equipment fault.

Similarly, wind can cool an exposed connection and reduce the temperature difference that might otherwise be visible.

Good inspection practice therefore includes recording the conditions that could influence the data.

Asset Identification Is Just as Important as Image Quality

A high-resolution photograph has limited maintenance value if nobody can determine exactly where it was taken.

A professional inspection should connect the image to the asset and component being inspected.

Depending on the inspection scope, this may include:

• Site identification
• Asset or tower number
• Equipment identification
• Component or tag
• Phase
• Inspection location
• Operating condition
• Date and time
• Environmental conditions
• Thermal measurements
• Reference temperature
• Temperature difference

This creates traceability between the field observation and the physical asset.

For repeat inspections, consistent identification also makes it easier to compare findings over time.

From Drone Images to Maintenance Information

Collecting imagery is only one part of an inspection.

The information must then be organized so that the client can understand what was observed and determine what action may be appropriate.

A useful inspection report should answer practical questions such as:

What was inspected? The asset and component should be clearly identified.

What was observed? The report should describe the visible or thermal condition.

Where is the condition located? Images and references should allow the maintenance team to locate the observation.

What were the inspection conditions? Relevant environmental and operating information should be recorded.

How significant does the observation appear? The report can identify findings that may require additional investigation or follow-up, while recognizing the limitations of the inspection data.

What should happen next? Where appropriate, the finding can support decisions about closer inspection, maintenance planning, monitoring or additional testing.

The drone itself does not make the maintenance decision.

It provides evidence that can support the people responsible for that decision.

Supporting Condition-Based Maintenance

One of the benefits of structured drone inspection is the ability to create a repeatable condition record.

A well-planned inspection can establish a baseline for future comparisons.

During subsequent inspections, maintenance teams may be able to compare:

• The same component
• Similar components
• The same location
• The same type of defect
• Changes in thermal patterns
• Changes in visible condition

Repeatability is particularly useful for assets where deterioration may occur gradually rather than through a single obvious failure event.

When a Drone Inspection Is the Right Tool

RPAS inspection is not a replacement for every inspection method.

Some conditions require:

• Physical access
• Electrical testing
• Nondestructive testing
• Internal inspection
• Engineering assessment
• Specialized maintenance personnel
• Equipment shutdown

The value of drone inspection is its ability to efficiently collect information before those resources are committed, or to support an existing inspection and maintenance program.

For difficult-to-access infrastructure, this can provide an efficient way to document the condition of an asset while reducing unnecessary physical access during the initial assessment.

The Helios Infrasight Approach

At Helios Infrasight, we view drone inspection as an information-collection process rather than simply an aerial photography service.

Our approach combines:

• Qualified RPAS operations
• High-resolution visual inspection
• Infrared thermography
• Asset and component identification
• Environmental-condition records
• Relevant operating information
• Structured image collection
• Thermal comparison
• Clear inspection reporting

The result is more than a collection of photographs.

It is a documented inspection record that can be reviewed, compared and incorporated into an existing maintenance program.

Turning Inspection Data Into Infrastructure Intelligence

The value of drone inspection ultimately comes from what the collected information allows a client to do.

A clear visual image can document a physical condition.

A thermal image can identify a temperature pattern that deserves attention.

Accurate asset identification provides traceability.

Environmental and operating information provides context.

Structured reporting connects the observations to maintenance activities.

Together, these elements create a stronger foundation for condition assessment.

At Helios Infrasight, our goal is to combine RPAS technology, visual inspection, infrared thermography and disciplined reporting to provide practical information for renewable energy, electrical infrastructure and industrial assets.

The drone captures the data. Professional inspection turns that data into infrastructure intelligence.

To discuss a visual, thermal or RPAS inspection for your facility, contact Helios Infrasight.
